Ez Goto Power Hub ( NOT FOR SALE )
The Ez goto power hub is included in the new ez goto completed kit from now on.
The power hub is not for sale !
Previous buyers can pay the actual USPS tracking postage ($6) to request the "free" power hub once.

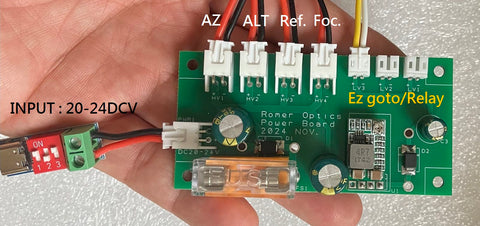

1. Ez Goto Hub
3x 3.15A fuses
4x 20V outputs (Az/Alt motor drivers, reference voltage ...)
3x 5~8DCV outputs (Ez Goto Az module, Dual speeds relay ..)
2. Type-C to 20DCV
The jumpers default at 20DCV (actually is 19.5V)
** Only the charger or power bank (support PD 3.0 and 65W ouput) can output 20DCV.
3. Type-C DC converter (defaults from 20V to 22.5V, 1A)
There are two models of drivers win ez goto system, JB542C and DM556H.
JB542C can work at 19.5V. Forget the DC converter if you use the PD power bank.
However, the other driver of DM556H requires 21V at least ( probably 22DCV ). The mini DC converter does the job to raise the voltage for the purpose. The converter is advertised as 2A at the peak and supposed to run long time less than 1A.
